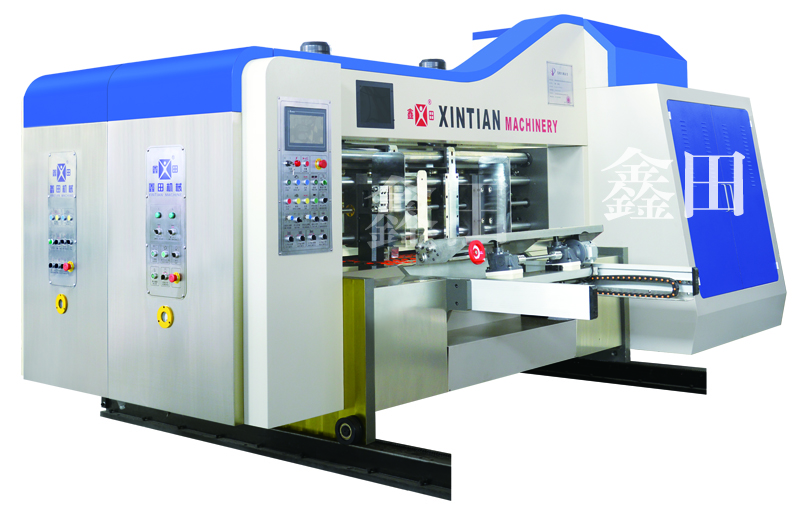

XT-M Die-Cutter

Technical Instruction of the Equipment:
■The die cutter phase is controlled by computer and electric digit with 360°adjustment.
■Uniflair glue die cutting cushion roller servo traces simultaneously, when the restored roller is input inside the servo computer system, it will calculate accurately and automatically and follow the print
 speed to ensure the velocity of blade line the same as the cushion roller and make the formation of the die cutting beautiful and same in size. No matter how the diameter of the cushion changes, the die
 cutting plate will not be damaged. The upper and lower roller of the die cutting adopts the design of different size, the servo system ensures the automatic deviation of the cushion and cutting die for every
circle, which greatly lengthen the service life of the cushion; in addition, the renovated cushion could be used for many times and greatly reduce the use cost.
■The cushion roller mechanical, horizontal and facility from + 30mm to -30mm could raise the service life of the cushion of the die-cutting.
■Left and right baffle and back baffle position are controlled by electric digit; option the side baffle is equipped with pneumatic trimming facilities.
■Consecutive or skip paper feed, infrared electrophonic counter, brush dust removal mechanism.
■All the electric parts was used international famous brand and host frequency conversion control, 30% electricity saving.
■This machine is the exclusive equipment for die cutting and molding, suitable for the manufacturing of colorful cartons, boxes and other package products of abnormal shape.
■It adopts the double roller pressing and urethane soft template, die cutting speed difference servo make up the linear velocity automatically, completing the paperboard and the siding, slotting, punching, creasing and folding of the corrugated paper of medium and small thickness once.
■It adopts the vacuum absorption to supplement the paper feeding; the main machine adjusts the speed by frequency control and the die cutting phase by electro-motion. It is featured with high cutting precision, high speed and convenient operation.
■Option servo pressure-free feeder or machinery lead edge feeder.
